Is an enterprise engaged in manufacturing,processing as well as trading various kinds of iron wire mesh.
MAIL US
 |
Hebei, China (Mainland)
Xin Gang,Tianjin
TIANZE
ISO9001:2008,GB/T19001-2008
10 Ton/Tons
L/C,T/T,O/A
| Quantity: | |
|---|---|

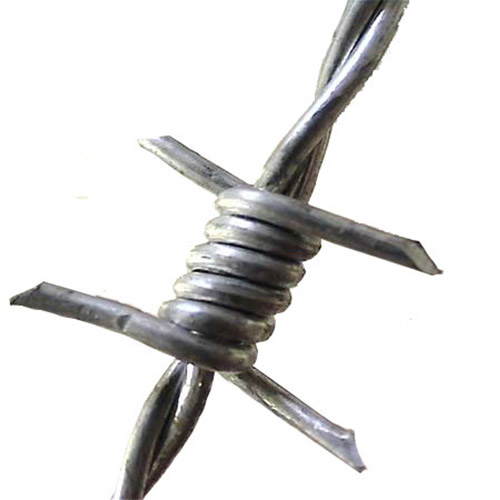

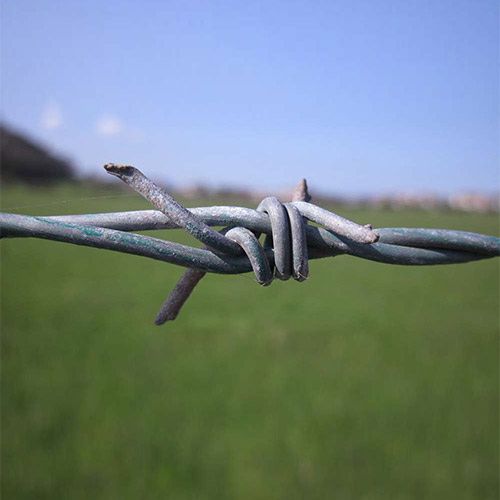

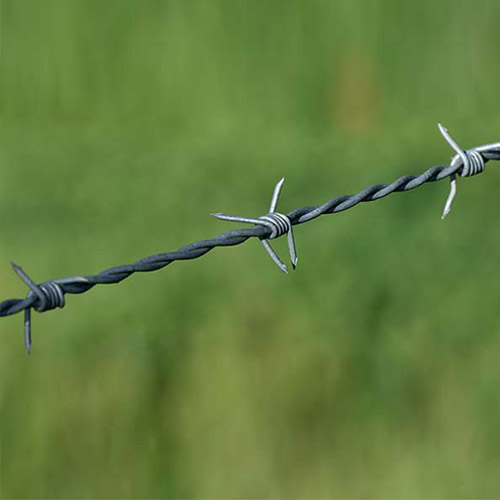

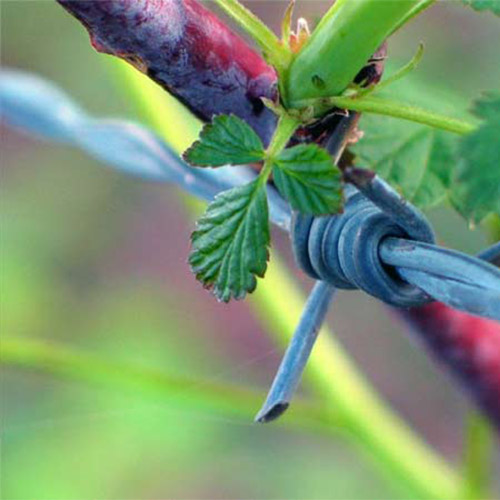

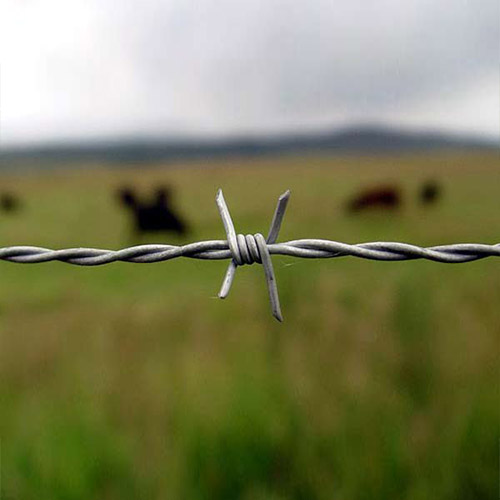

Double-strand Rwist Barbed Wire has two line wires twisted together with wire barbs attached. The wire is normally attached to wooden fence posts using a curved nail. This type is much safer than single barbed wire with the high tension.
Twist Types: Single twisted barbed wire, double twisted barbed wire, traditional twisted barbed wire and PVC coated barbed wire.
Barbed wire size: 12*12; 14*14; 12*14, 14*16, 16*16.
Packing:
In coil of 25 kilos or 50 kilos net,lined with PVC strips,then wrapped with PVC or hessian cloth.
Specification:
Type | Wire Gauge (SWG) | Barb Distance (cm) | Barb Length (cm) | |
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire | 10# x 12# | 7.5-15 | 1.5-3 | |
12# x 12# | ||||
12# x 14# | ||||
14# x 14# | ||||
14# x 16# | ||||
16# x 16# | ||||
16# x 18# | ||||
PVC coated barbed wire; PE barbed wire | before coating | after coating | 7.5-15 | 1.5-3 |
1.0mm-3.5mm | 1.4mm-4.0mm | |||
BWG11#-20# | BWG8#-17# | |||
SWG11#-20# | SWG8#-17# | |||
PVC PE coating thickness: 0.4mm-0.6mm; | ||||
Double-strand Rwist Barbed Wire has two line wires twisted together with wire barbs attached. The wire is normally attached to wooden fence posts using a curved nail. This type is much safer than single barbed wire with the high tension.
Twist Types: Single twisted barbed wire, double twisted barbed wire, traditional twisted barbed wire and PVC coated barbed wire.
Barbed wire size: 12*12; 14*14; 12*14, 14*16, 16*16.
Packing:
In coil of 25 kilos or 50 kilos net,lined with PVC strips,then wrapped with PVC or hessian cloth.
Specification:
Type | Wire Gauge (SWG) | Barb Distance (cm) | Barb Length (cm) | |
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire | 10# x 12# | 7.5-15 | 1.5-3 | |
12# x 12# | ||||
12# x 14# | ||||
14# x 14# | ||||
14# x 16# | ||||
16# x 16# | ||||
16# x 18# | ||||
PVC coated barbed wire; PE barbed wire | before coating | after coating | 7.5-15 | 1.5-3 |
1.0mm-3.5mm | 1.4mm-4.0mm | |||
BWG11#-20# | BWG8#-17# | |||
SWG11#-20# | SWG8#-17# | |||
PVC PE coating thickness: 0.4mm-0.6mm; | ||||
