Hebei, China (Mainland)
Xin Gang,Tianjin
TIANZE
ISO9001:2008,GB/T19001-2008
10 Ton/Tons
L/C,T/T,O/A
Availability: | |
---|---|
Quantity: | |

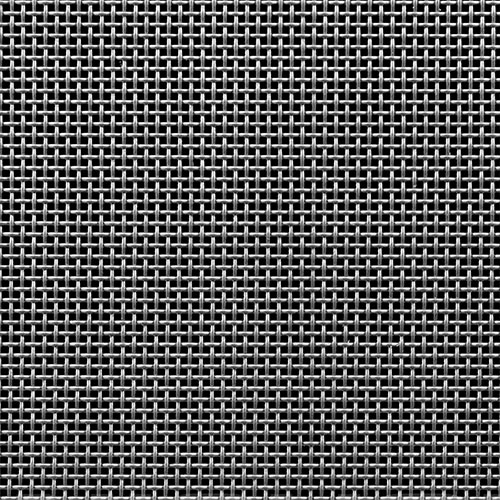

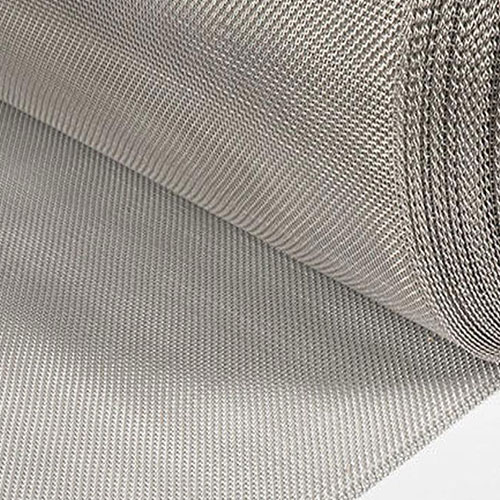

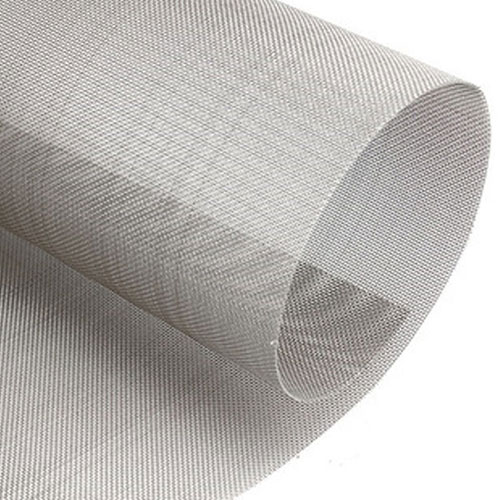

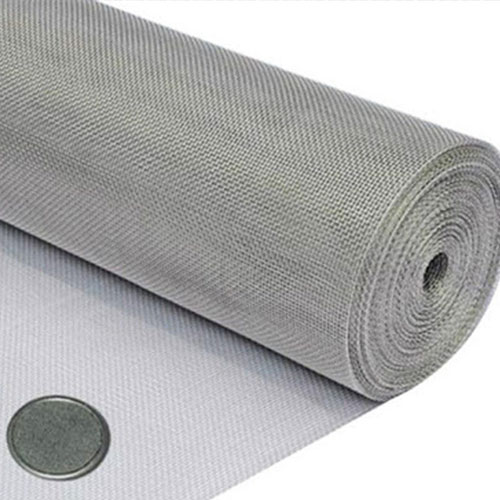

Stainless steel screen printing screen is made of plain woven stainless steel wire, with high tensile strength and yield stress properties.
Specifications
Material: stainless steel 304, 316, 304L, 316L,
Weaving method: plain weave, twill weave, Dutch weave.
Mesh number: 80-400 mesh.
Wire diameter :18 microns to 120 microns.
Thickness :28 microns to 230 microns.
Widths :40, 48, 60
Length: Standard is 100'.
Item | Mesh count | Thread Diameter | Open Area | Aperture | Theoretical ink |
mesh/inch | μm | % | μm | cm3/m2 | |
SPMS-200-50 | 200 | 50 | 37.0 | 77 | 42.0 |
SPMS-230-35 | 230 |
| 46.7 | 75 | 37.0 |
SPMS-250-40 | 250 | 40 | 36.8 | 62 | 34.0 |
SPMS-250-30 | 250 | 30 | 49.7 | 72 | 30.0 |
SPMS-250-35 | 250 | 35 | 43.0 | 67 | 32.0 |
SPMS-270-35 | 270 | 35 | 39.4 | 59 | 30.0 |
SPMS-300-30 | 300 | 30 | 41.7 | 55 | 28.0 |
SPMS-325-30 | 325 | 30 | 38.0 | 48 | 24.0 |
Advantages:
A smooth surface
High corrosion resistance
High heat resistance
Good solvent resistance
High tension, low elongation
Application:
Wax shield net.
Microcircuit manufacturing.
Textile printing.
Ceramic printing.
Glass printing.
Glass screen printing
Ceramic screen printing
Plastics and Packaging
Membrane switch
