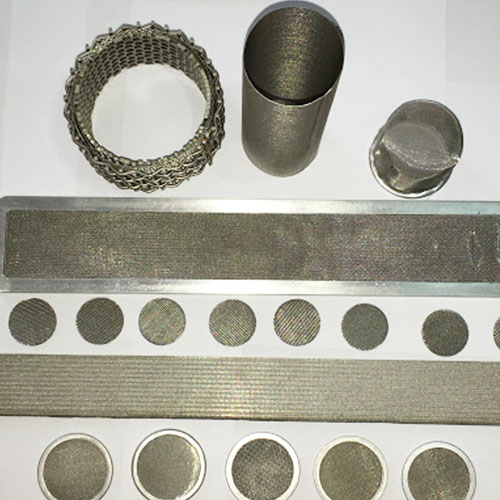

The screen filter tray is cut off from the screen drum and welded, sintered or pressed into multiple layers.Widely used in petroleum, chemical, pharmaceutical and other industries of precision filtration.

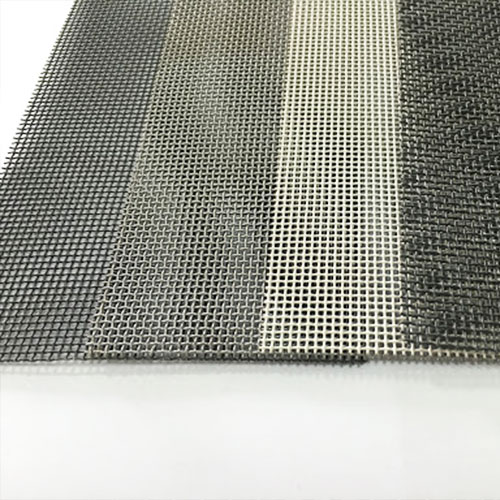

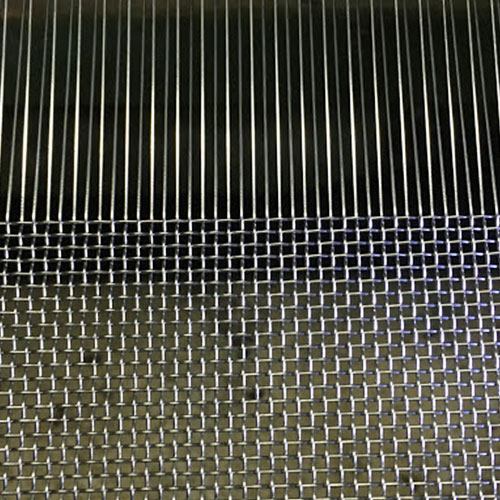

We can provide a variety of woven screen filters, including plain weave, twill weave, Dutch weave, can effectively separate and separate solid particles.It can also be used for liquid and gas filtration.
Specification
Wire :SUS302, SUS304, SUS304L
Wire diameter: 0.01mm-5mm.
Disc diameter :5 mm - 600 mm
Weaving method: plain weave, twill weave, Dutch weave and so on.
Layered: One or more layers.
Shape of filter disc: round, rectangular, square, crescent, semicircle, etc.
Edge material: copper, aluminum, stainless steel, rubber, etc.
Filtration accuracy: 0.2m-100 μm.
Features
Physical properties: high tensile force, strong pollution holding capacity, high strength, high pressure resistance, accurate filtration rating, wear resistance, wear resistance, high temperature resistance.
Chemical properties: acid and alkali resistance and corrosion resistance.
Process performance: control porosity uniformity, long service life, precision stamping
Application:
Water filtration
Gas filter
The oil industry
Metallurgical
