Stainless Steel Plain Dutch Mesh

Share to:

  • Hebei, China (Mainland)
  • Xin Gang,Tianjin
  • TIANZE
  • ISO9001:2008,GB/T19001-2008
  • 10 Ton/Tons
  • L/C,T/T,O/A
Quantity:

06MWPWBZ

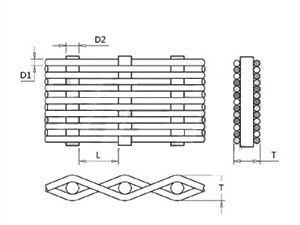

D1,D2 stand for wire diameter;L1,L2 stand for mesh;T stands for mesh thickness.

Plain dutch weave stainless steel wire mesh

Characteristics of plain dutch weave stainless steel wire mesh:

1)”zero”mesh.The wire diameter of warp wire is larger than weft wire.
2)Every weft wire tight with each other.
3)High precision and flow rate.
4)It will filter more solid particle in comparison with square hole and rectangular hole.

Plain dutch weave stainless steel wire mesh is the best filtration mesh in water treatment system,especially in critical application of the spatial filtration, and the fuel and combustion chamber filtration etc.

7×40-12×64 mesh plain dutch weave,wire 0.9×0.71-0.56×0.40mm

Mesh
Warp x Weft

Wire mm Warp x Weft

Weight kg/m2

Dffective Section Area%

Weight kg/m2

Thickness mm

7 40

0.9 0.71

347

14.3

6.45

2.32

7 44

0.71 0.63

319

14.2

5.24

1.97

8 45

0.8 0.60

310

15.5

5.33

2.00

8 85

0.45 0.315

275

27.3

2.51

1.08

8.5 60

0.63 0.45

296

20.3

3.88

1.53

10 76

0.5 0.355

248

21.8

3.02

1.21

10 90

0.45 0.28

249

29.2

2.27

1.01

12 64

0.56 0.40

210

16.0

3.50

1.36

12×86-17×120 mesh plain dutch weave,wire 0.45×0.315-0.355×0.224mm

Mesh
Warp x Weft

Wire mm Warp x Weft

Weight kg/m2

Dffective Section Area%

Weight kg/m2

Thickness mm

12 86

0.45 0.315

211

20.9

2.74

1.08

12.5 76

0.45 0.355

192

15.9

3.02

1.16

14 76

0.45 0.355

173

14.3

3.10

1.16

14 100

0.40 0.28

182

20.3

2.52

0.96

14 110

0.355 0.25

177

22.2

2.16

0.855

16 100

0.4 0.28

160

17.7

2.60

0.96

16 120

0.28 0.224

145

19.2

1.81

0.728

17 120

0.355 0.224

155

22.4

2.04

0.803

20×110-30×150 mesh plain dutch weave,wire 0.355×0.25-0.25×0.18mm

Mesh
Warp x Weft

Wire mm Warp x Weft

Weight kg/m2

Dffective Section Area%

Weight kg/m2

Thickness mm

20 110

0.355 0.25

126

15.3

2.34

0.855

20 140

0.315 0.20

133

21.5

1.89

0.715

20 170

0.25 0.16

130

28.9

1.40

0.57

22 120

0.315 0.224

115

15.5

2.05

0.763

25 140

0.28 0.2

100

15.2

1.89

0.68

24 110

0.355 0.25

97

11.3

2.47

0.855

28 150

0.28 0.18

92

15.9

1.76

0.64

30 150

0.25 0.18

82

13.5

1.68

0.61

30×140-50×300 mesh plain dutch weave,wire0.315×0.20-0.16×0.09mm

Mesh
Warp x Weft

Wire mm Warp x Weft

Weight kg/m2

Dffective Section Area%

Weight kg/m2

Thickness mm

30 140

0.315 0.20

77

11.4

2.14

0.715

35 190

0.224 0.14

74

16.8

1.37

0.504

35 170

0.224 0.16

69

12.8

1.52

0.544

40 200

0.18 0.135

63

15.4

1.23

0.43

45 250

0.16 0.11

56

15.2

1.04

0.384

50X250

0.14X0.112

53

-

1.03

-

50 270

0.14 0.10

50

15.2

0.92

0.34

50 300

0.16 0.09

55

20.0

0.92

0.34

60×270-70×340 mesh plain dutch weave 60×270-70×340 mesh

Mesh
Warp x Weft

Wire mm Warp x Weft

Weight kg/m2

Dffective Section Area%

Weight kg/m2

Thickness mm

60 270

0.14 0.1

39

11.2

0.97

0.34

60 X300

0.14 0.09

41

14.1

0.90

0.32

60 500

0.14 0.055

51

34.1

0.67

0.252

65 390

0.125 0.071

42

19.1

0.74

0.267

65 750

0.10 0.036

36

37.1

0.40

0.172

70 340

0.125 0.08

35

13.2

0.81

0.285

70×390-80X350 mesh plain dutch weave,wire 0.112×0.071-0.10X0.086mm

Mesh
Warp x Weft

Wire mm Warp x Weft

Weight kg/m2

Dffective Section Area%

Weight kg/m2

Thickness mm

70 390

0.112 0.071



16.3

0.71

0.254

70X350

0.12X0.08

35

-

0.81

-

70X400

0.12X0.07



-

0.74

-

70 930

0.10 0.03

30

36.2

0.38

0.16

77 560

0.14 0.05

38

27.5

0.72

0.24

80X350

0.10X0.086



-

0.84

-

80X400-100×1200 mesh plain dutch weave,wire 0.10X0.07-0.063×0.023mm

Mesh
Warp x Weft

Wire mm Warp x Weft

Weight kg/m2

Dffective Section Area%

Weight kg/m2

Thickness mm

80X400

0.10X0.07

40

-

0.69

-

80 600

0.1 0.045

37

29.8

0.50

0.19

80 700

0.125 0.04

40

38.1

0.59

0.205

80 430

0.125 0.063

32

16.6

0.74

0.251

100X600

0.10X0.045

-

-

0.55

-

100X800

0.10X0.035

-

-

0.50

-

100 1200

0.063 0.023

23

37.6

0.25

0.109
