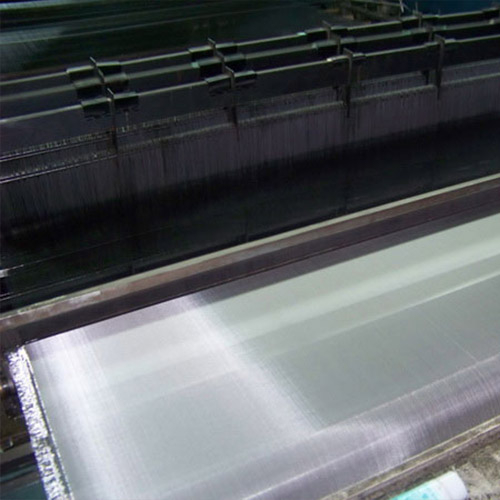

Stainless Steel Twill Mesh

Share to:

  • Hebei, China (Mainland)
  • Xin Gang,Tianjin
  • TIANZE
  • ISO9001:2008,GB/T19001-2008
  • 10 Ton/Tons
  • L/C,T/T,O/A
Quantity:
02XWBZ

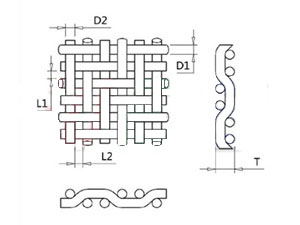

D1,D2 stand for Wire diameter; L1,L2 stand for Meah;T stands for Meah thickness.

Twill weave stainless steel Wire Meah

Characteristics of twill weave stainless steel Wire Meah:

1)Square hole,rectangular hole,large hole
2)Warp Wire and weft Wire are of equal size.
3)Accurate in Meah size and firm in structure.
4)Low hardness and easy to clean.

Twill weave stainless steel wire meah is mainly used for gas filtration, liquid filtration and other filtration in the aerospace, petroleum, chemical and other industries.

24 Meah twill weave, Wire 0.58-0.30mm

Meah

Wire



Aperture



Open Area

Open Area

Weight





mm

Inch

mm

Inch

rate %

mm2

kg/m2

lbs/m2

24

0.58

0.023

0.48

0.019

20.43

0.23

4.04

8.88

24

0.50

0.020

0.56

0.022

27.83

0.31

3.00

6.60

24

0.45

0.018

0.61

0.024

33.04

0.37

2.43

5.35

24

0.43

0.017

0.63

0.025

35.25

0.39

2.22

4.88

24

0.4

0.016

0.66

0.026

38.69

0.43

1.92

4.22

24

0.38

0.015

0.68

0.027

41.08

0.46

1.73

3.81

24

0.35

0.014

0.71

0.028

44.80

0.50

1.47

3.23

24

0.34

0.013

0.72

0.028

46.07

0.52

1.39

3.05

24

0.33

0.013

0.73

0.029

47.36

0.53

1.31

2.87

24

0.30

0.012

0.76

0.030

51.34

0.58

1.08

2.38

28 Meah twill weave, Wire 0.45-0.25mm

Meah

Wire



Aperture



Open Area

Open Area

Weight





mm

Inch

mm

Inch

rate %

mm2

kg/m2

lbs/m2

28

0.45

0.018

0.46

0.018

25.40

0.21

2.84

6.24

28

0.43

0.017

0.48

0.019

27.67

0.23

2.59

5.69

28

0.40

0.016

0.51

0.020

31.25

0.26

2.24

4.93

28

0.38

0.015

0.53

0.021

33.77

0.28

2.02

4.45

28

0.35

0.014

0.56

0.022

37.72

0.31

1.72

3.77

28

0.34

0.013

0.57

0.022

39.09

0.32

1.62

3.56

28

0.33

0.013

0.58

0.023

40.48

0.33

1.52

3.35

28

0.30

0.012

0.61

0.024

44.80

0.37

1.26

2.77

28

0.27

0.011

0.64

0.025

49.33

0.41

1.02

2.25

28

0.25

0.010

0.66

0.026

52.48

0.43

0.88

1.93

40 Meah twill weave, Wire 0.20-0.34mm

Meah

Wire



Aperture



Open Area

Open Area

Weight





mm

Inch

mm

Inch

rate %

mm2

kg/m2

lbs/m2

40

0.20

0.008

0.44

0.017

46.93

0.19

0.80

1.76

40

0.21

0.008

0.43

0.017

44.80

0.18

0.88

1.94

40

0.23

0.009

0.41

0.016

40.68

0.16

1.06

2.33

40

0.25

0.010

0.39

0.015

36.76

0.15

1.25

2.75

40

0.26

0.010

0.38

0.015

34.88

0.14

1.35

2.97

40

0.27

0.011

0.37

0.014

33.04

0.13

1.46

3.21

40

0.30

0.012

0.34

0.013

27.83

0.11

1.80

3.96

40

0.33

0.013

0.31

0.012

23.07

0.09

2.18

4.79

40

0.34

0.013

0.30

0.012

21.58

0.09

2.31

5.09

60 Meah twill weave, Wire 0.12mm-0.27mm

Meah

Wire



Aperture



Open Area

Open Area

Weight





mm

Inch

mm

Inch

rate %

mm2

kg/m2

lbs/m2

60

0.12

0.005

0.30

0.012

51.34

0.09

0.43

0.95

60

0.13

0.005

0.29

0.012

48.01

0.09

0.51

1.12

60

0.14

0.006

0.28

0.011

44.80

0.08

0.59

1.29

60

0.15

0.006

0.27

0.011

41.69

0.07

0.68

1.49

60

0.16

0.006

0.26

0.010

38.69

0.07

0.77

1.69

60

0.17

0.007

0.25

0.010

35.81

0.06

0.87

1.91

60

0.18

0.007

0.24

0.010

33.04

0.06

0.97

2.14

60

0.19

0.007

0.23

0.009

30.38

0.05

1.08

2.38

60

0.21

0.008

0.21

0.008

25.40

0.05

1.32

2.91

60

0.24

0.009

0.18

0.007

18.76

0.03

1.73

3.80

60

0.25

0.010

0.17

0.007

16.76

0.03

1.88

4.13

60

0.27

0.011

0.15

0.006

13.12

0.02

2.19

4.81

80 Meah twill weave, Wire 0.10mm-0.17mm

Meah

Wire



Aperture



Open Area

Open Area

Weight





mm

Inch

mm

Inch

rate %

mm2

kg/m2

lbs/m2

80

0.10

0.004

0.22

0.009

46.93

0.05

0.40

0.88

80

0.12

0.005

0.20

0.008

38.69

0.04

0.58

1.27

80

0.13

0.005

0.19

0.007

34.88

0.04

0.68

1.49

80

0.14

0.006

0.18

0.007

31.25

0.03

0.78

1.72

80

0.15

0.006

0.17

0.007

27.83

0.03

0.90

1.98

80

0.17

0.007

0.15

0.006

21.58

0.02

1.16

2.54

180 Meah twill weave, Wire 0.05mm,0.06mm

Meah

Wire



Aperture



Open Area

Open Area

Weight





mm

Inch

mm

Inch

rate %

mm2

kg/m2

lbs/m2

180

0.05

0.002

0.09

0.004

41.69

0.01

0.23

0.50

180

0.06

0.002

0.08

0.003

33.04

0.01

0.32

0.71

210 Meah twill weave, Wire 0.05mm

Meah

Wire



Aperture



Open Area

Open Area

Weight





mm

Inch

mm

Inch

rate %

mm2

kg/m2

lbs/m2

210

0.05

0.002

0.07

0.003

34.41

0.01

0.26

0.58

265 Meah twill weave, Wire 0.04mm

Meah

Wire



Aperture



Open Area

Open Area

Weight





mm

Inch

mm

Inch

rate %

mm2

kg/m2

lbs/m2

265

0.04

0.002

0.06

0.002

33.95

0.00

0.21

0.47

270 Meah twill weave, Wire 0.04mm

Meah

Wire



Aperture



Open Area

Open Area

Weight





mm

Inch

mm

Inch

rate %

mm2

kg/m2

lbs/m2

270

0.04

0.002

0.05

0.002

33.04

0.00

0.22

0.48

280 Meah twill weave, Wire 0.04mm

Meah

Wire



Aperture



Open Area

Open Area

Weight





mm

Inch

mm

Inch

rate %

mm2

kg/m2

lbs/m2

280

0.04

0.002

0.05

0.002

31.25

0.00

0.22

0.49
