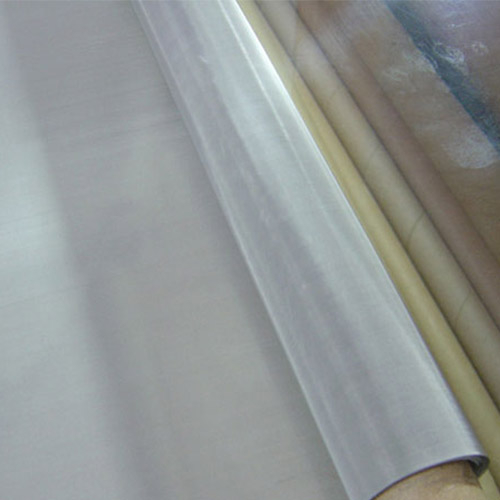

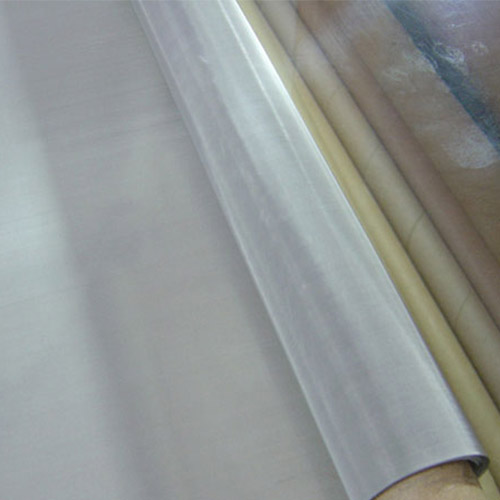

Stainless Steel Twill Dutch Mesh

Share to:

  • Hebei, China (Mainland)
  • Xin Gang,Tianjin
  • TIANZE
  • ISO9001:2008,GB/T19001-2008
  • 10 Ton/Tons
  • L/C,T/T,O/A
Quantity:

D1,D2 stand for wire diameter;L1,L2 stand for mesh; T stands for mesh thickness.

Twill dutch weave stainless steel wire mesh

Characteristics of twill dutch weave stainless steel wire mesh:

1)”zero”mesh, light tight woven mesh.
2)Tight mesh and high resistance.
3)Very low absolute accuracy grade.(down to 5-6 μm)
4)Surface on both side of mesh are all very smooth.(top and bottom).

Twill dutch weave stainless steel wire mesh is widely used for filtration in the pharmaceutical industry, chemical industry, water systems and other industries etc.

20×270-30×270 mesh twill dutch weave,wire 0.25×0.20-0.28×0.20mm

Mesh Warp x Weft

Wire mm Warp x Weft

Aperture μm

Effective Section Area%

Weight kg/m2

Thickness mm

20 270

0.25 0.2

119

17.6

3.01

0.65

20 200

0.355 0.28

118

12.1

4.55

0.915

24 300

0.28 0.18

110

19.6

2.90

0.64

20 150

0.45 0.355

101

7.5

5.73

1.16

30 340

0.28 0.16

89

17.9

2.76

0.60

30 270

0.28 0.20

77

11.2

3.28

0.68

40×540-70×600 mesh twill dutch weave,wire 0.18×0.10-0.14×0.09mm

Mesh Warp x Weft

Wire mm Warp x Weft

Aperture μm

Effective Section Area%

Weight kg/m2

Thickness mm

40 540

0.18 0.10

70

23.5

1.67

0.38

40 430

0.18 0.125

63

15.4

2.00

0.43

50 600

0.125 0.09

51

17.2

1.41

0.305

50 500

0.14 0.11

47

12

1.75

0.364

65 600

0.14 0.09

36

-

1.53

0.32

70 600

0.14 0.09

31

10.1

1.39

-

78×760-100×850 mesh twill dutch weave,wire 0.112×0.071-0.10×0.063mm

Mesh Warp x Weft

Wire mm Warp x Weft

Aperture μm

Effective Section Area%

Weight kg/m2

Thickness mm

78 760

0.112 0.071

-

13.5

1.20

0.254

78 680

0.112 0.08

29

10.3

1.33

0.272

80 680

0.112 0.08

28

9.8

1.33

-

90 850

0.10 0.063

26

12.7

1.06

0.226

90 760

0.10 0.071

24

9.6

1.18

0.242

100 760

0.10 0.071

20

7.4

1.20

0.242

100 850

0.10 0.063

22

10

1.09

0.226

130×1100-165×1500 mesh twill dutch weave 130×1100-165×1500 mesh

Mesh
Warp x Weft

Wire mm Warp x Weft

Aperture μm

Effective Section Area%

Weight kg/m2

Thickness mm

130 1100

0.071 0.05

17

9.4

0.85

0.171

130 1200

0.071 0.045

18

12

0.77

0.161

130 1500

0.063 0.036

21

18.6

0.61

0.135

150 1400

0.063 0.04

15

11.4

0.70

0.143

160 1500

0.063 0.036

-

12.4

0.64

0.135

165 1500

0.063 0.036

14

11.4

0.65

-

174×1700-216×1800 mesh twill dutch weave,wire 0.063×0.032-0.045×0.03mm

Mesh Warp x Weft

Wire mm Warp x Weft

Aperture μm

Effective Section Area%

Weight kg/m2

Thickness mm

174 1700

0.063 0.032

13

12.9

0.60

0.127

165 1400

0.063 0.04

-

8.8

0.721

0.143

174 1400

0.063 0.04

11

7.4

0.73

-

203 1500

0.056 0.036

9

6.2

0.64

0.128

203 1600

0.05 0.032

10

9.3

0.53

0.114

216 1800

0.045 0.03

-

9.4

0.51

0.105

250×1600-500×3500 mesh twill dutch weave,wire 0.05×0.032-0.025×0.015mm

Mesh Warp x Weft

Wire mm Warp x Weft

Aperture μm

Effective Section Area%

Weight kg/m2

Thickness mm

250 1600

0.05 0.032

-

3.8

0.56

0.114

250 1900

0.04 0.028

8

7.8

0.47

0.096

285 2100

0.036 0.025

7

7.2

0.42

0.086

300 2100

0.036 0.025

6

6.0

0.42

-

317 2100

0.036 0.025

5

4.7

0.43

-

325 2300

0.036 0.024

4

4.2

0.43

-

363 2300

0.032 0.022

-

4.5

0.37

0.076

400 2700

0.028 0.02

-

4.7

0.34

0.068

500 3500

0.025 0.015

3

4.9

0.27

0.055
